LOW PRESSURE DEW POINT MONITOR FOR COMPRESSED AIR SYSTEMS

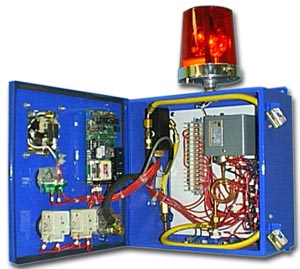

The model 36258 is a dual function panel. This panel will continuously montitor and display compressed air dew point and pressure in all compressed air systems operating from 10 psig to 150 psig maximum and incorporating refrigerated, desiccant or other forms of compressed air drying equipment. If the dew point exceed parameters or the pressure drops below the field prescribed pressure control set point, the beacon and horn are energized. Also, the respective indicator light will advise which condition occurred. The 36258 also has 4-20 mA or 0-5V output.
Specifications
| DEW POINT RANGE: | +10° F to +70° F (at +73° F sample air temperature) (optional: -40° F to +15°) |
| AMBIENT AIR TEMERATURE: | +50° F to 100° F |
| ACCURACY: | +/- 2° F |
| PRESSURE RANGE: | 0-150 psig |
| RECORDER OUTPUT: (OPTIONAL) | 4-20mA Scaled as -40° F to +70° F. Jumper Selectable 0-5V. |
| DIMENSIONS: | W - 12.25" | L - 12.25" | D - 6.25" |
| POWER REQUIREMENTS: | 115vac +/- 10% 50/60hz 0.1amps |
| WEIGHT: | 32 lbs. |
Call for OEM Pricing
For additional information on the Low Pressure Dew Point Monitor please call 734-946-0700 ext. 222!
